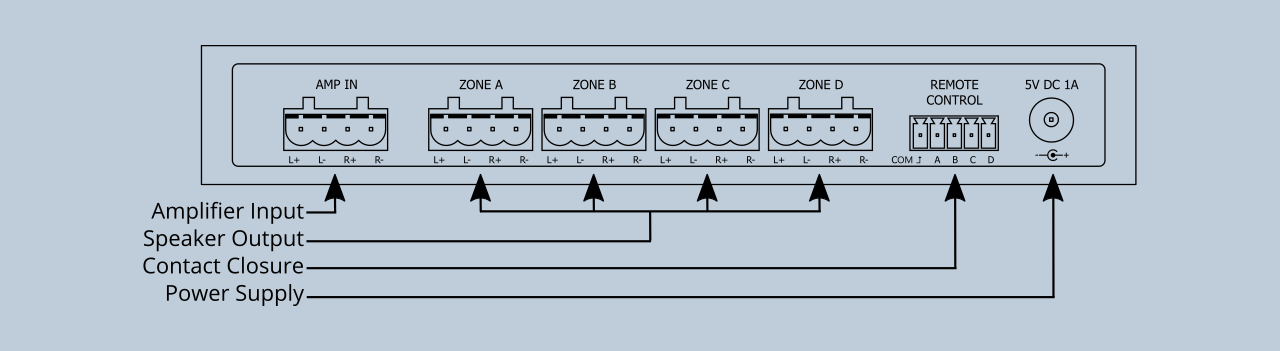

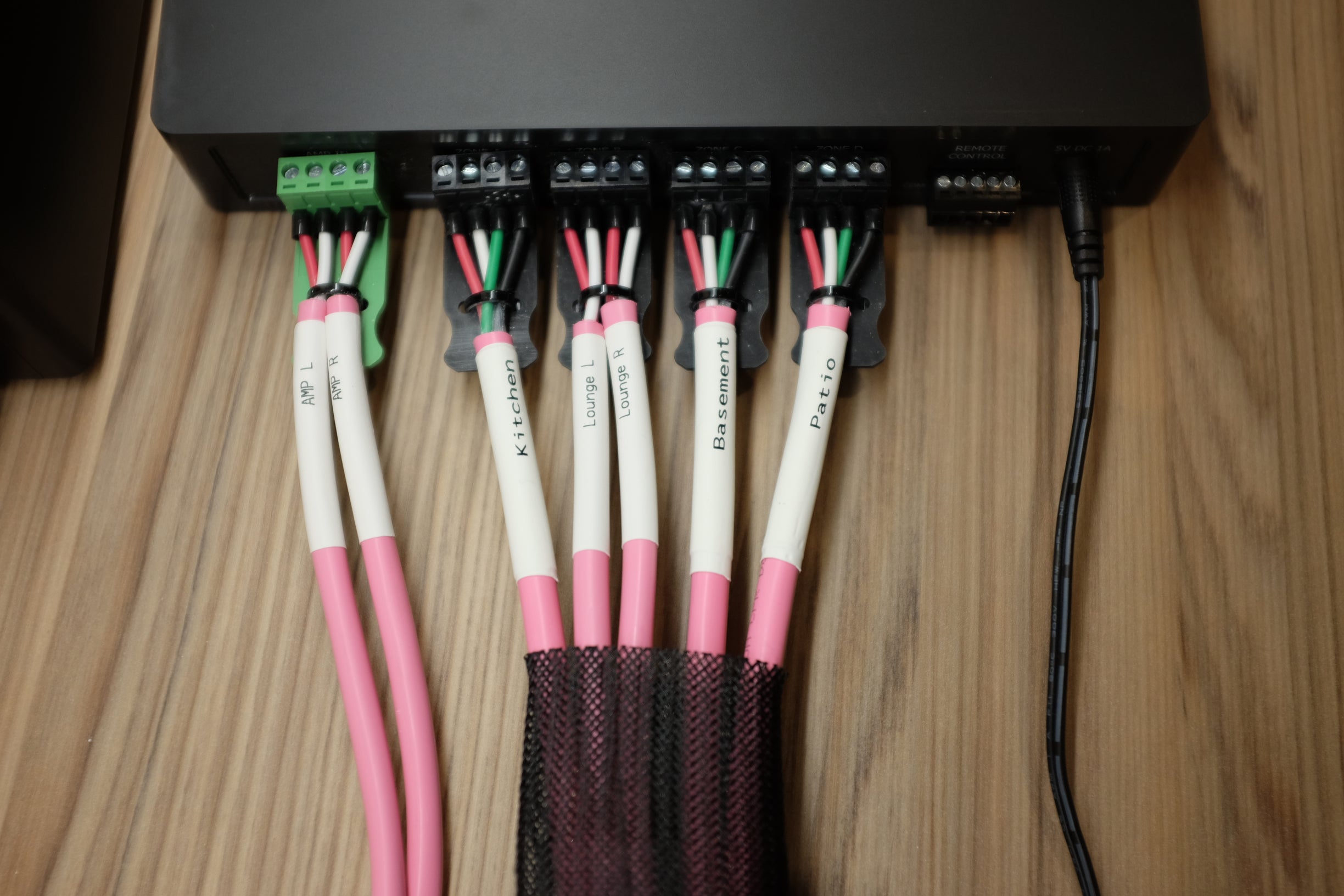

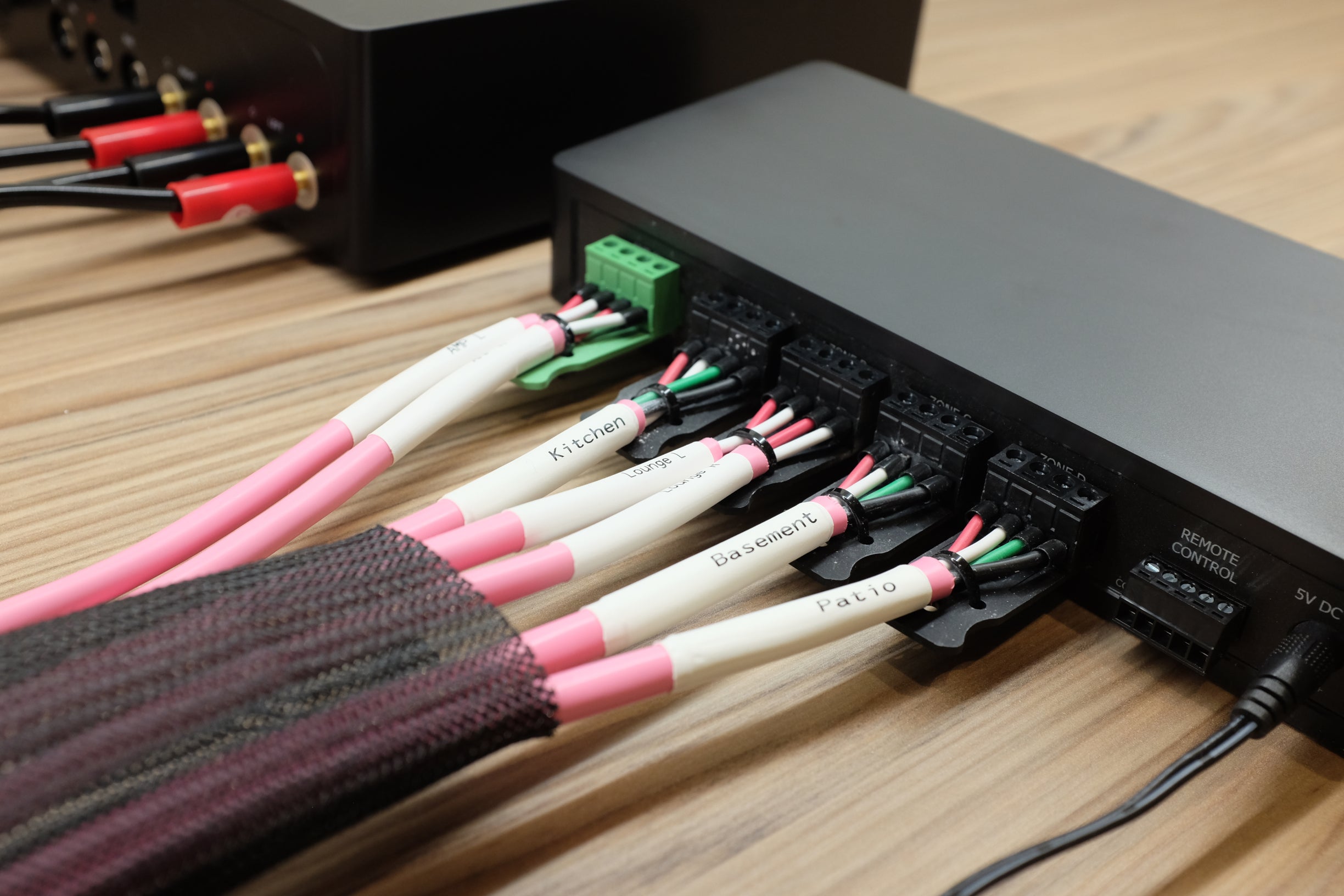

• New Audioflow units include SpeakerSnap PHX connectors which are tool-free and accept up to 12AWG Cable. Older Audioflow units have screw terminal plugs and accept up to 16AWG and require a 3.5mm flat screwdriver.
• Take care to ensure there are no stray cables causing short-circuits between the terminals in the plugs.
• Especially if you are using 4-Core Cable, please be sure of your wiring scheme.  Incorrect wiring can lead to strange issues such as zones not completely turning off.
• Please make all of your connections before powering on your amplifier.

Remote Control

This connector is for the contact closure feature which allows the option to operate your Audioflow Smart Speaker Switch from a cable run to a remote momentary switch, or to a control system.

Power Supply

This is for connecting the included international power adapter. If you require a replacement, you would need a 5V 1A DC Supply with a 2.1mm Barrel Plug and Centre Positive.

NOTE If your power supply is not connected, the Speaker Zones will default into their OFF position so there would be no audio output.
